Escalation: Activate another node when a tree is idle

  • Updated
  • As many of our customers are using Zingtree decision trees to help standardize their business processes, time-based escalation has become an important part of these systems. Essentially, if a part of the process has not been acted upon for a certain amount of time, a new part of the process can trigger automatically.

    You can escalate to send an email or a text message, call a webhook, and also move the process to another node.

    Demo

    The Demo Gallery contains a procurement process decision tree that requires a manager’s approval if the cost of an item is over $100. If the request isn’t approved or declined in one day, an email is generated, and the process becomes available for a supervisor to approve.

    Click here to use the Procurement Process Demo Tree

    How to Set up Escalation

    Setting up escalation is easy – just edit the node, pick an amount of time to trigger the escalation, and choose a new node to jump to.

    1. Open Designer or Overview, and pick a node to edit.

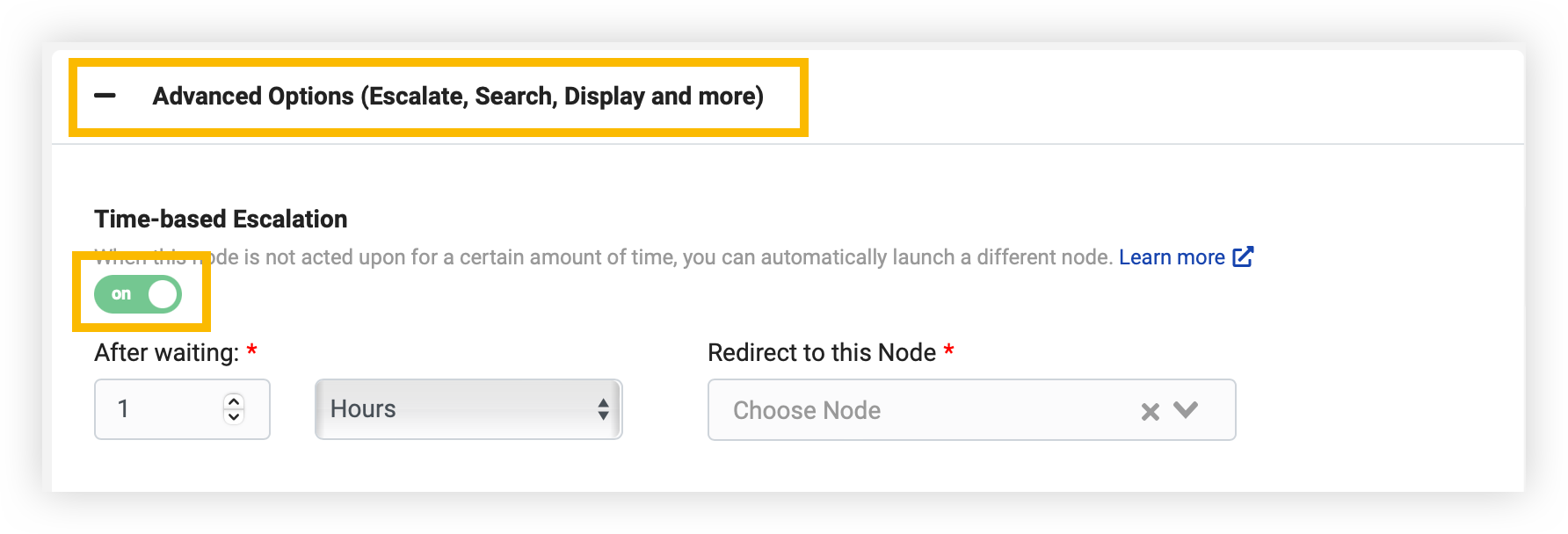

    2. In the Node Editor, click the Escalate tab.

    3. Pick a node to escalate to, and a time after which the escalation occurs.
    4. Make sure to click Save Changes when finished.

    Hint: In the Overview tool, you can see any nodes that have escalation set up:

    More info: You can see how the procurement process demo is built here.

    Checking Escalation Status

    If you are using Zingtree Task Manager, your tasks will show if any are pending escalation:

    Hovering over the icon, or clicking the info button will give you an exact time when the escalation will occur. Here’s how the task info looks with a pending escalation:

    If you’re not using Task Manager, the Recent Sessions tool (or Session List report) is a great way to see if there are any sessions with pending escalations.
