Create New Freshdesk Tickets from a Node

  • Updated

  • Does your company use Freshdesk to manage technical support?

    If so, you can use Zingtree decision trees to reduce your technical support team’s workload. Customers can either self-solve their issue, or you can get a new ticket in your Freshdesk that includes all the information from their decision tree session. By effortlessly gathering background information from the customer via the decision tree, you save a lot of time by reducing back-and-forth messages.

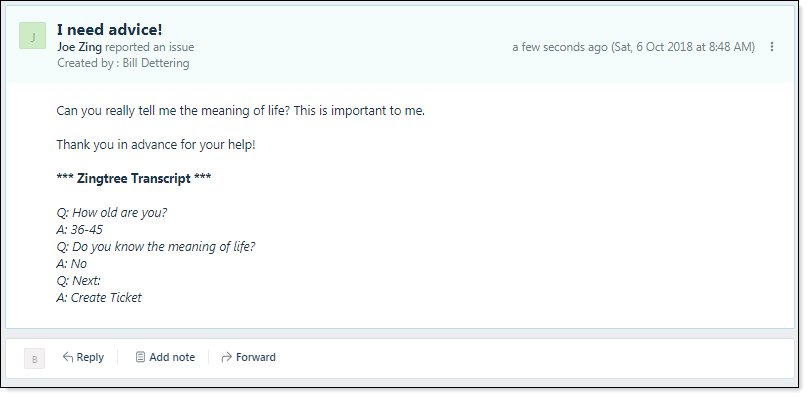

    Here’s how a ticket generated by Zingtree appears in Freshdesk:

    Note how the ticket includes a transcript of the Zingtree session.

    Click the link if you’d like to try a demo tree that generates a ticket in our Freshdesk sandbox.

    This short video shows how it works:

    Setup Overview

    It’s easy to set this up – here’s an overview of the process:

    1. Add a new Application to Zingtree for creating Freshdesk Tickets.
    2. Create a “Ticket Submitted” node.
    3. Create a “New Ticket” node to obtain the customer’s name, email, a ticket subject, a description, and optional custom fields.

    Add a new Application to Zingtree for creating Freshdesk Tickets.

    A Zingtree application can be called from any node. You’ll need to add the Freshdesk App first as follows:

    1. Log into your Zingtree account.
    2. Go to Account > My Apps.

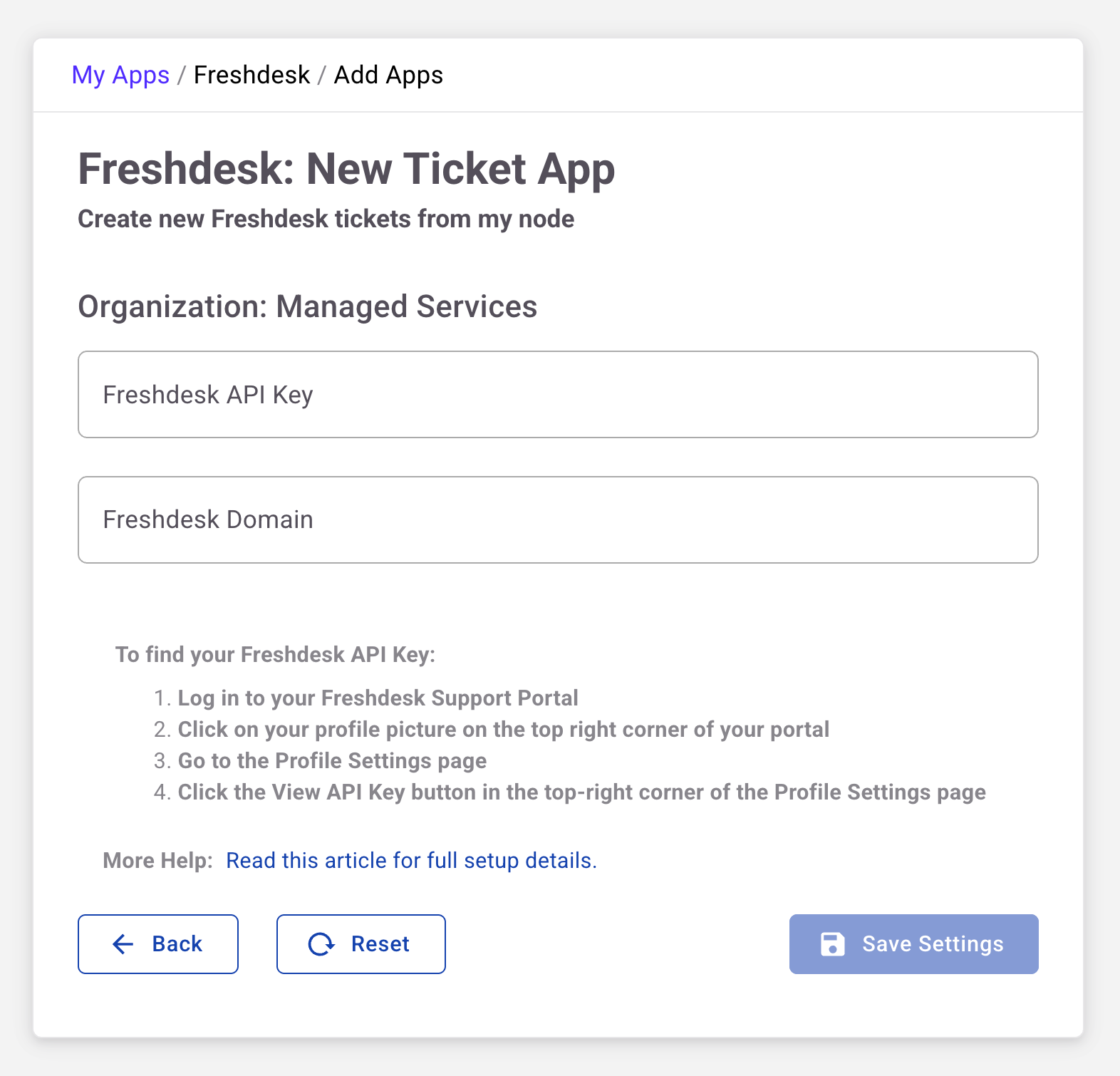

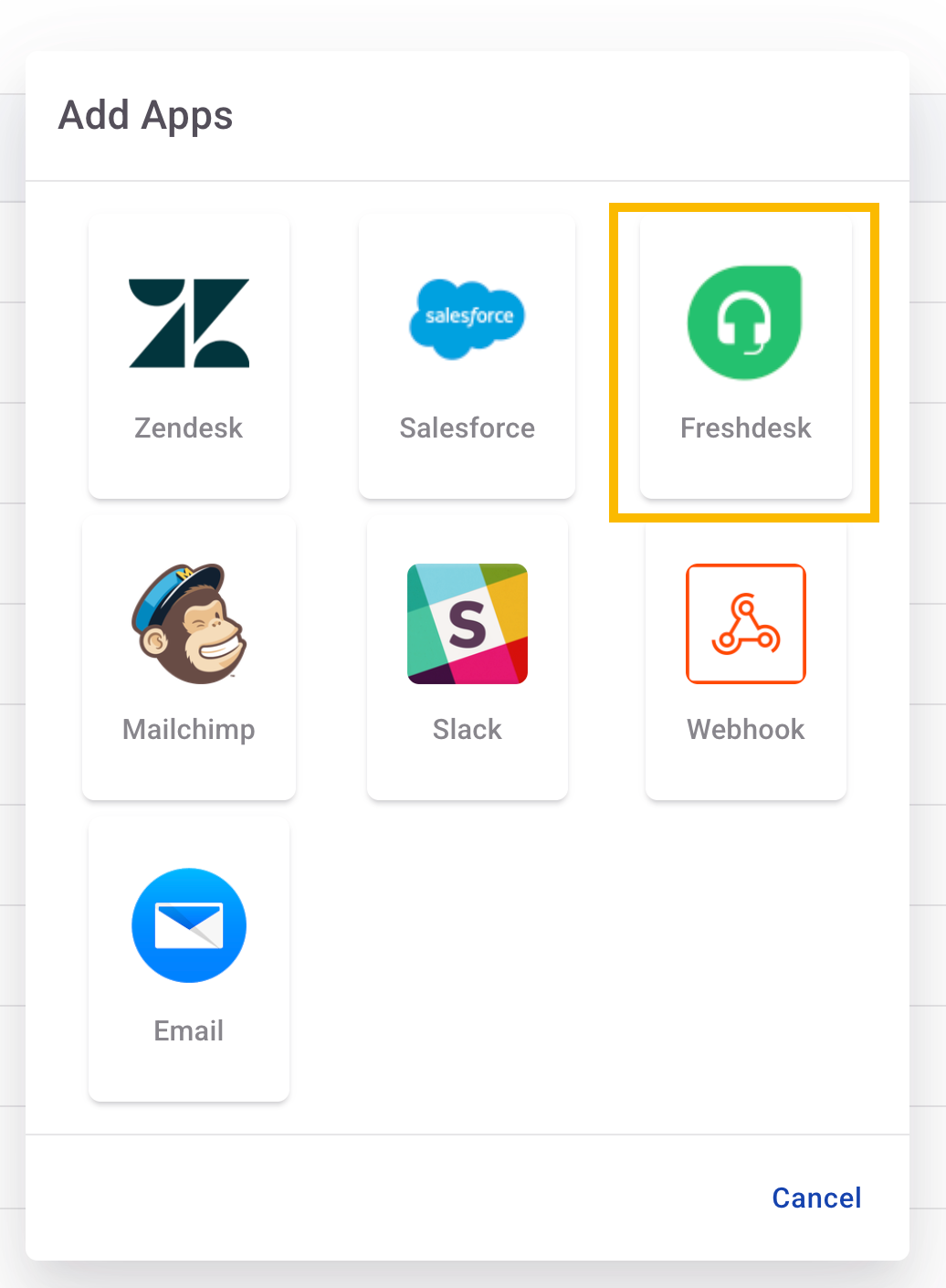

    3. Select the Freshdesk: New Ticket App.
    4. Enter your Freshdesk API key and domain name. (Instructions are on the page.)

    5. Click Add Freshdesk App to save the new App.

    Create a “Ticket Submitted” Node

    When this node appears, a new ticket is added to your Freshdesk installation. This is the end result of pressing a “Submit Ticket” button inside the decision tree. You can create this node as follows:

    1. Go to Tools > Add Node.
    2. Add a new Content Node.
    3. Give the node a title, and any text you want to appear in the content area – like “Thanks for submitting a ticket” etc.
    4. Click the Apps/Webhooks tab.
    5. Click Add App/Webhook.

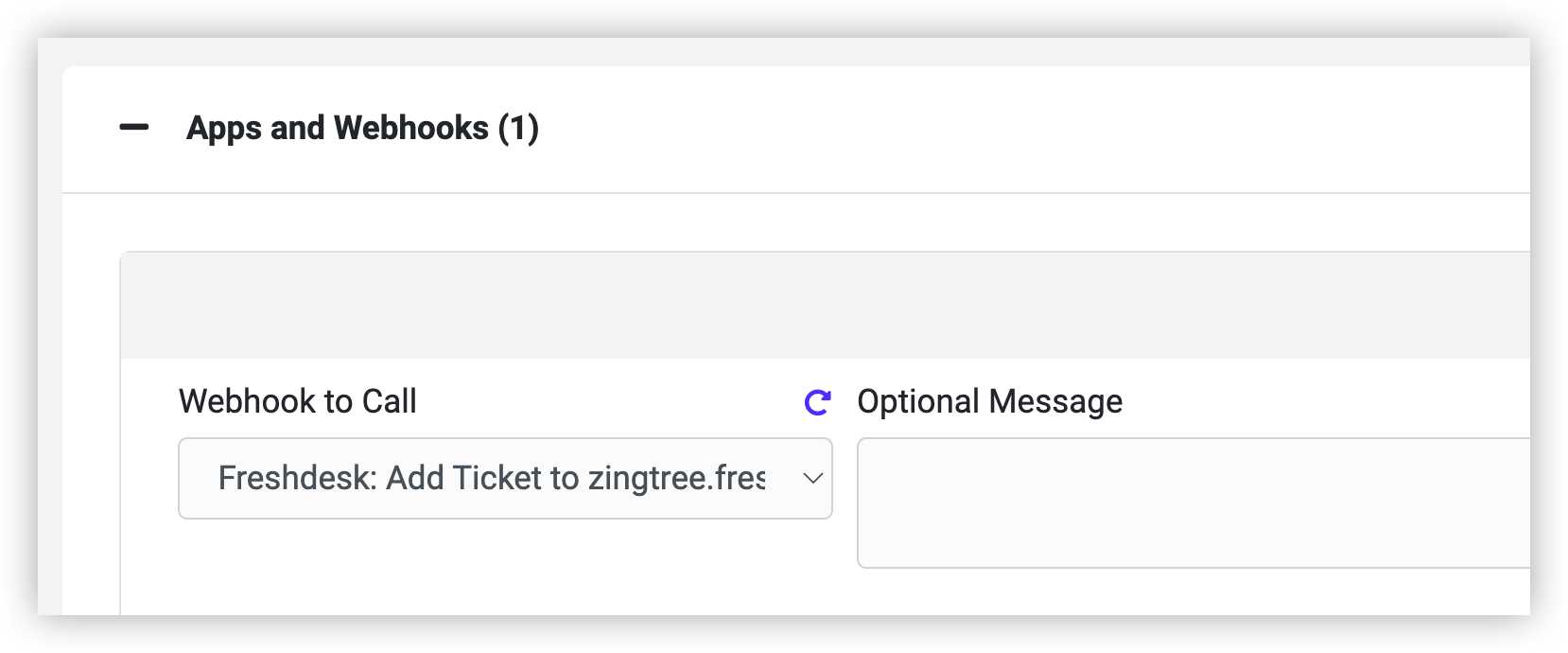

    6. Select the Freshdesk App you just created. You should see something like this:

    7. Click Save Changes to save this node.

    Now we’re ready to link a ticket entry page to this “Ticket Submitted” node.

    Create a “New Ticket” node

    After your customer goes through the troubleshooting session, if they haven’t been able to resolve the issue, you can direct them to a node which collects the following info:

    • Name
    • Email
    • Subject for the Ticket
    • Description of the problem.

    You use Zingtree’s Data Entry Fields to get this info. The field variables need to be named as follows:

    name = fd_name
    email = fd_email
    subject = fd_subject
    description = fd_description

    1. Edit the node where you want the customer to submit the ticket.
    2. Click the Data Entry Fields tab.

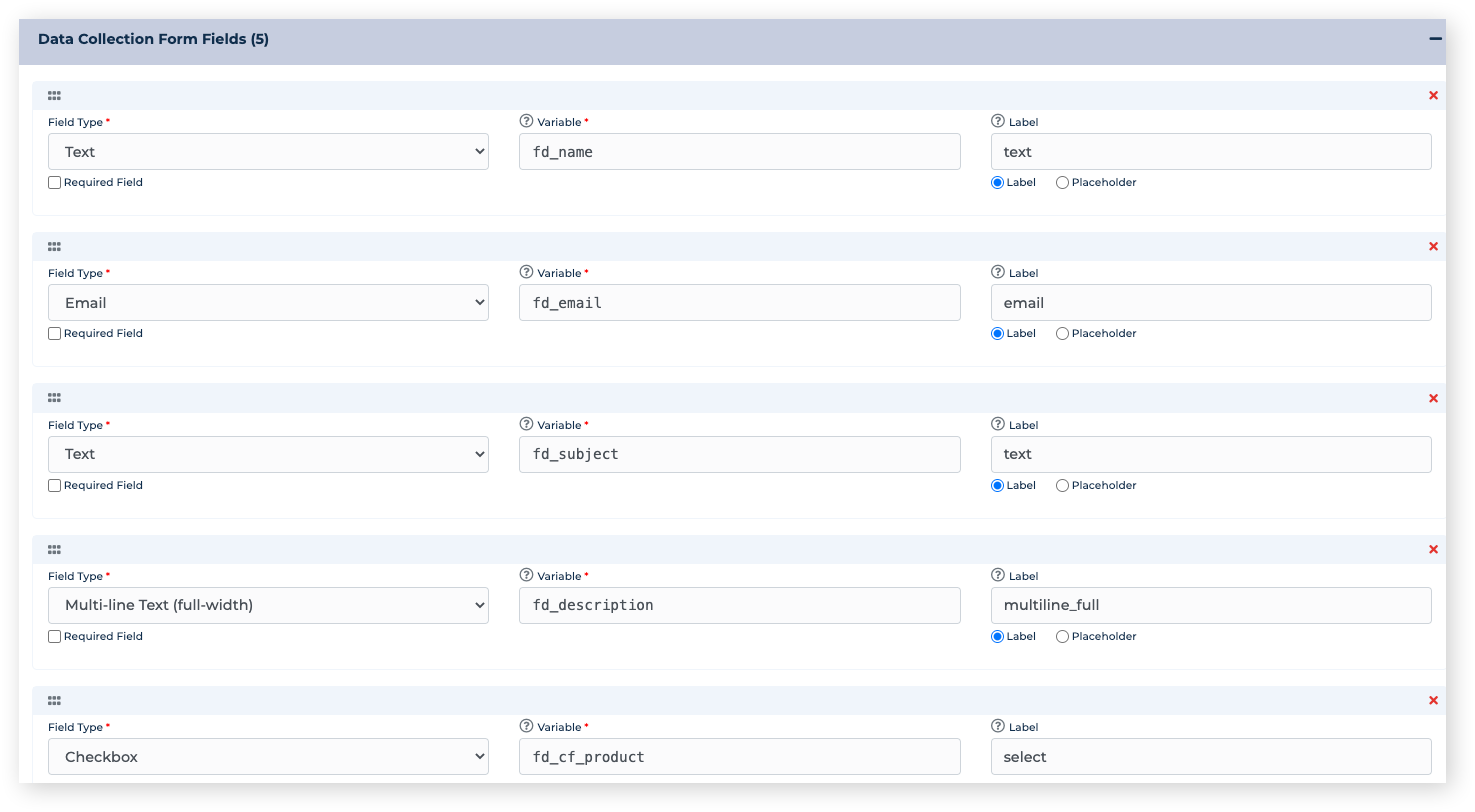

    3. Add fields for fd_name, fd_email, fd_subject, fd_description. When you are done, your Data Entry Fields will look something like this:

    4. You can also optionally add Custom Fields into the ticket. In the above example, we have a custom field named product in our Freshdesk installation. So the Zingtree equivalent is fd_cf_product.
    5. If you want to set the ticket status and priority, you can also use variables named fd_status and fd_priority. This is optional.
    6. Another option: Make a variable named fd_type for the ticket type. It can have text exactly matching one of these: Question, Incident, Problem or Feature Request.
    7. Click the Action Buttons tab, and add a “Submit” button to go to your submit ticket page.
    8. Save the changes to this node.

    Summary

    Examine this tree from the Demo Gallery to see a real live setup.

  • Does your company use Freshdesk to manage technical support?

    If so, you can use Zingtree decision trees to reduce your technical support team’s workload. Customers can either self-solve their issue, or you can get a new ticket in your Freshdesk that includes all the information from their decision tree session. By effortlessly gathering background information from the customer via the decision tree, you save a lot of time by reducing back-and-forth messages.

    Here’s how a ticket generated by Zingtree appears in Freshdesk:

    Note how the ticket includes a transcript of the Zingtree session.

    Click the link if you’d like to try a demo tree that generates a ticket in our Freshdesk sandbox.

    This short video shows how it works:

    Setup Overview

    It’s easy to set this up – here’s an overview of the process:

    1. Add a new Application to Zingtree for creating Freshdesk Tickets.
    2. Create a “Ticket Submitted” node.
    3. Create a “New Ticket” node to obtain the customer’s name, email, a ticket subject, a description, and optional custom fields.

    Add a new Application to Zingtree for creating Freshdesk Tickets.

    A Zingtree application can be called from any node. You’ll need to add the Freshdesk App first as follows:

    1. Log into your Zingtree account.
    2. Go to Account > My Apps.
    3. Select the Freshdesk: New Ticket App.
    4. Enter your Freshdesk API key and domain name. (Instructions are on the page.)

    5. Click Add Freshdesk App to save the new App.

    Create a “Ticket Submitted” Node

    When this node appears, a new ticket is added to your Freshdesk installation. This is the end result of pressing a “Submit Ticket” button inside the decision tree. You can create this node as follows:

    1. Go to Tools > Add Node.
    2. Add a new Content Node.
    3. Give the node a title, and any text you want to appear in the content area – like “Thanks for submitting a ticket” etc.
    4. Click the Apps/Webhooks tab.
    5. Click Add App/Webhook.
    6. Select the Freshdesk App you just created. You should see something like this:

    Now we’re ready to link a ticket entry page to this “Ticket Submitted” node.

    Create a “New Ticket” node

    After your customer goes through the troubleshooting session, if they haven’t been able to resolve the issue, you can direct them to a node which collects the following info:

    • Name
    • Email
    • Subject for the Ticket
    • Description of the problem.

    You use Zingtree’s Data Entry Fields to get this info. The field variables need to be named as follows:

    name = fd_name
    email = fd_email
    subject = fd_subject
    description = fd_description

    1. Edit the node where you want the customer to submit the ticket.
    2. Click the Data Entry Fields tab.
    3. Add fields for fd_name, fd_email, fd_subject, fd_description. When you are done, your Data Entry Fields will look something like this:

    4. You can also optionally add Custom Fields into the ticket. In the above example, we have a custom field named product in our Freshdesk installation. So the Zingtree equivalent is fd_cf_product.
    5. If you want to set the ticket status and priority, you can also use variables named fd_status and fd_priority. This is optional.
    6. Another option: Make a variable named fd_type for the ticket type. It can have text exactly matching one of these: Question, Incident, Problem or Feature Request.
    7. Click the Action Buttons tab, and add a “Submit” button to go to your submit ticket page.
    8. Save the changes to this node.

    Summary

    Examine this tree from the Demo Gallery to see a real live setup.
