Scoring Decision Trees with a Running Total

  • Updated
  • Zingtree is able to create what we call evaluations. These can be tests, quizzes, assessments, training simulations, or anything that requires assigning a score to each question answered, and later acting upon the total score. Zingtree can keep a running tally of scores.



    Here's how to build a tree with click scoring or variables:

    • Add a score value to each button click when designing your tree.
    • As the end-user goes through your tree, Zingtree keeps a running total of the score values of all buttons clicked.
    • When you're ready to act upon the running total score, use a Logic Node. From there, you can specify rules to redirect to nodes based on score values.
    • You can use multiple variable names for your score throughout your tree.
    • If you just want to assign a value, and not keep a running total, prefix the value with an = sign. So =3 would set the variable to 3, no matter what it was set to previously.


    Want to build your own? Start here:

    1. Go to Overview, and edit a node.
    2. Select the Question and Action Buttons dropdown.
    3. Select Variable(s) to set on button click, and enter a Button Click Variable name that will be used to tally scores and branch on later.
    4. Now, add score values to button clicks. Your screen will look something like this: (The score area is outlined in red.)2022-04-05_10-24-40.png
    5. Next, add a new Logic Node, using +New Note, New Logic Node.

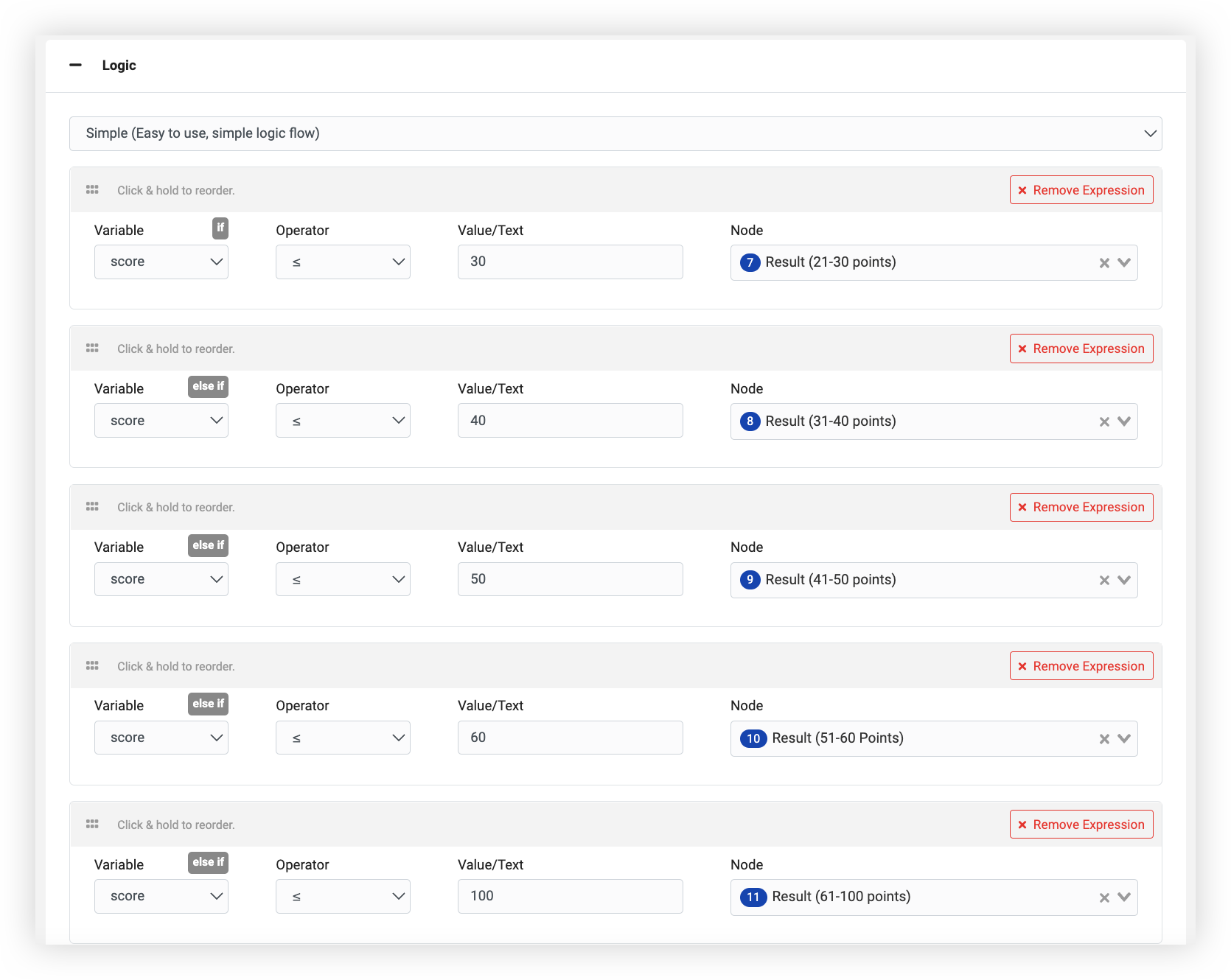

    6. In the Logic Node, enter rules for where to go to depending upon different score values. Here's how it looks:2022-04-05_10-49-37.png


    7. Link the last button click of your test/quiz/assessment to this new Logic Node.



    Note that the Logic Node never appears on-screen. When you direct the flow of your Zingtree to this node, it looks at the sum total of all the button click scores, and redirects to the proper node.



    Tip #1: Want to display the score on a node? Just add the text #score#  into the content area to show the score variable. If you used a different variable name (like total ), enter it instead (i.e. #total# ).

    Tip #2: You can also add scoring to Data Entry Fields. For example, a list box, checkbox, or radio button can use a scoring variable as well. Learn more about Data Entry Fields below.

    Notes:

    • You should make sure you are using the latest embed code or hosting URL for your tree.
    • If your end-user presses the Back button, the running total score will adjust.
    • If the tree is restarted, the running total score resets to zero.

  • Zingtree is able to create what we call evaluations. These can be tests, quizzes, assessments, training simulations, or anything that requires assigning a score to each question answered, and later acting upon the total score. Zingtree can keep a running tally of scores.



    Here's how to build a tree with click scoring or variables:

    • Add a score value to each button click when designing your tree.
    • As the end-user goes through your tree, Zingtree keeps a running total of the score values of all buttons clicked.
    • When you're ready to act upon the running total score, use a Logic Node. From there, you can specify rules to redirect to nodes based on score values.
    • You can use multiple variable names for your score throughout your tree.
    • If you just want to assign a value, and not keep a running total, prefix the value with an = sign. So =3 would set the variable to 3, no matter what it was set to previously.


    Want to build your own? Start here:

    1. Go to Overview, and edit a node.
    2. Open the Action Buttons tab.
    3. Select Assign Button Click Variable, and enter a Button Click Variable name that will be used to tally scores and branch on later.
    4. Now, add score values to button clicks. Your screen will look something like this: (The score area is outlined in red.)

      live gallery example here


    5. Save the changes to the node.
    6. Next, add a new Logic Node, using Tools, Add Node.

    7. In the Logic Node, enter rules for where to go to depending upon different score values. Here's how it looks:


      live gallery example here

    8. Link the last button click of your test/quiz/assessment to this new Logic Node.



    Note that the Logic Node never appears on-screen. When you direct the flow of your Zingtree to this node, it looks at the sum total of all the button click scores, and redirects to the proper node.



    Need to See More Examples? The Zingtree Gallery has several trees that use Scoring capabilities. You can play or examine them to see how they work.  See the Logic Demos.

    Tip #1: Want to display the score on a node? Just add the text #score#  into the content area to show the score variable. If you used a different variable name (like total ), enter it instead (i.e. #total# ).

    Tip #2: You can also add scoring to Data Entry Fields.  For example, a list box, checkbox or radio button can use a scoring variable as well.  Learn more about Data Entry Fields below.

    Notes:

    • You should make sure you are using the latest embed code or hosting URL for your tree.
    • If your end-user presses the Back button, the running total score will adjust.
    • If the tree is restarted, the running total score resets to zero.

  • Throughout 2022 Zingtree will be upgrading customers to our new faster and more modern user experience! Here's how to tell which experience your Zingtree Authors are currently using.

    Log in to your Zingtree Author account and navigate to My Trees. How does your current My Trees page look?

    Zingtree Classic


    New User Experience
